Plate VI.
SHIPBUILDING

Fig. 50.—Curves of E.H.P. for 1,000-ton Ship.
Group "B." Type 5. Block Coefficient ·529.

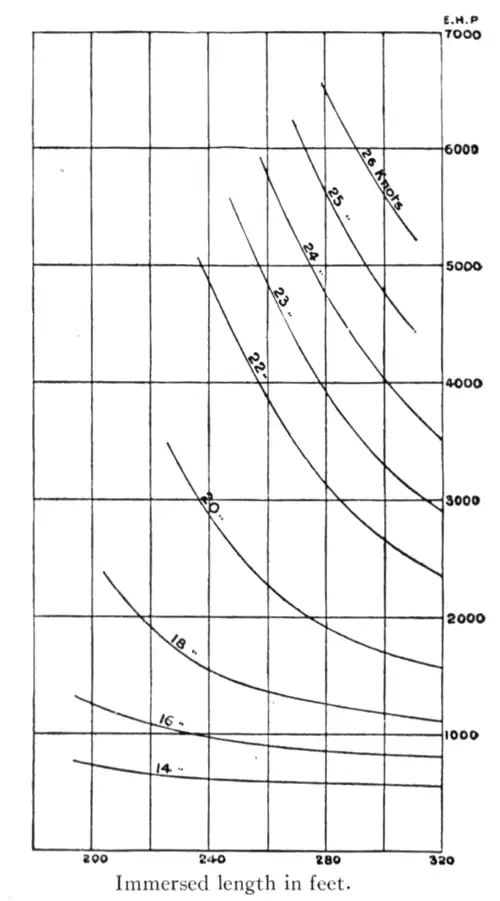

Fig. 51.—Curves of E.H.P. for 1,000-ton Ship.
Group “B.” Type 6. Block Coefficient ·542.

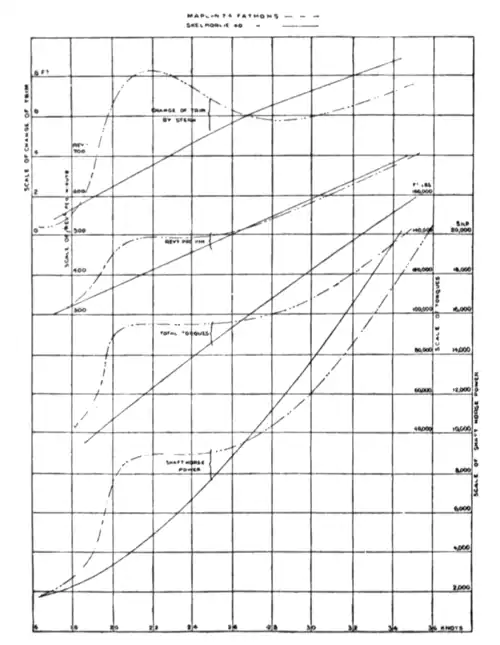

Fig. 52.—Speed trials of H.M. Torpedo Boat Destroyer “Cossack.” At Maplin and Skelmorlie. Displacement 836 tons.
