Plate IV.
SHIPBUILDING

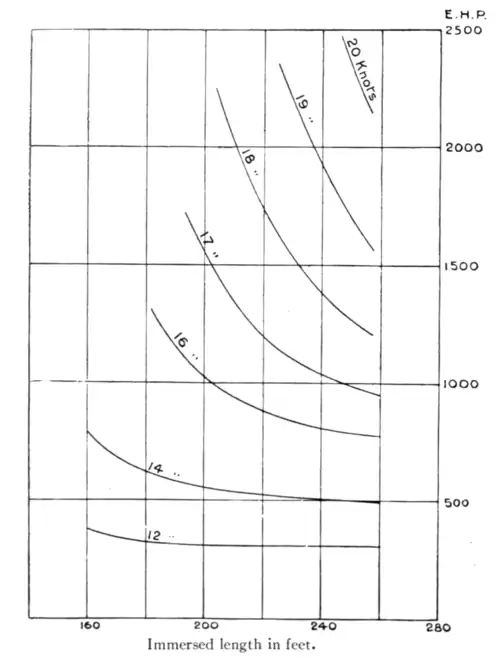

Fig. 44.—Curves of E.H.P. for 1,000-ton Ship.
Group “A.” Type 5. Block Coefficient ·529.


Fig. 45.—Curves of E.H.P. for 1,000-ton Ship.
Group “A.” Type 6. Block Coefficient ·542.


Fig. 46.—Curves of E.H.P. for 1,000-ton Ship.
Group “B.” Type 1. Block Coefficient ·495.

Fig. 47.—Curves of E.H.P. for 1,000-ton Ship.
Group “B.” Type 2. Block Coefficient ·505.
